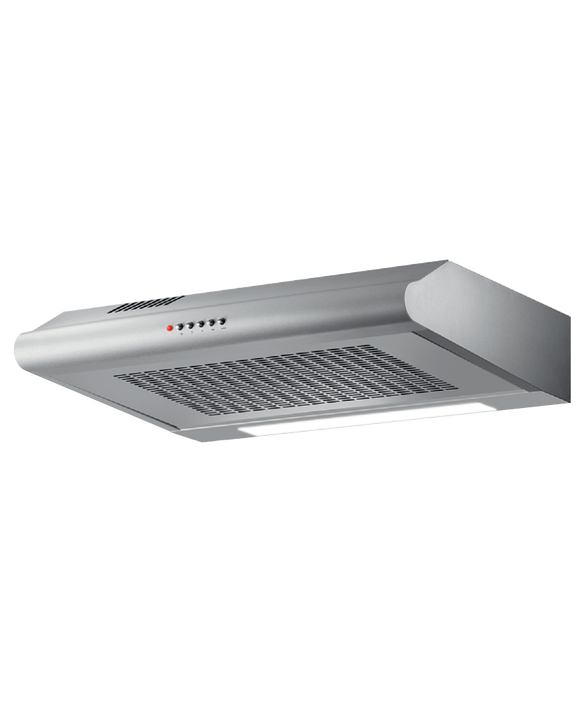

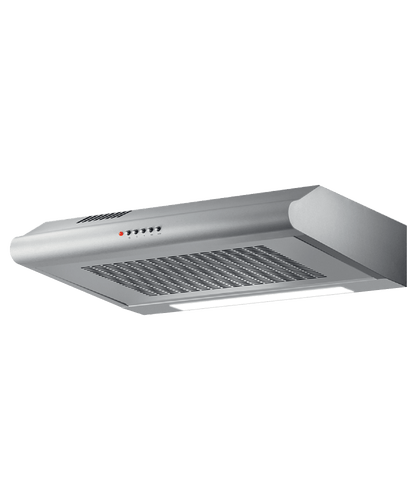

HF60LX4
60cm 300 Series
Fixed Wall Rangehood
- 300 Series
Simple and responsive extraction is always important in the kitchen. These rangehoods capture and remove cooking odours, vapour and steam.
Stainless Steel
- Finish
- Stainless Steel
60cm 300 Series
Fixed Wall Rangehood
Height
120mm
Width
598mm
Depth
450mm
Specifications
- Height
- 120mm
- Width
- 598mm
- Depth
- 450mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Eave ducting kit | PD-RHK125E |
| Light bulb | 792507 |
| Recirculation carbon filter | 792506 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
Fan ratings
| Fan ratings Attributes | Value |
|---|---|
| Maximum motor performance | 350m³/hr |
| Maximum pressured air movement EN61591 | 185m³/hr |
| Maximum sound rating | 58dBA |
Installation and cleaning
| Installation and cleaning Attributes | Value |
|---|---|
| Air outlet size | 120mm |
| Dishwasher safe filters | 1 |
| Ducted | Top extraction |
| Recirculation | Optional - front extraction |
Performance
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 1 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 450mm |
| Height | 120mm |
| Width | 598mm |
Product information
| Product information Attributes | Value |
|---|---|
| Control type | Push Button |
Ventilation features
| Ventilation features Attributes | Value |
|---|---|
| Light type | Incandescent 1 x 40W |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
