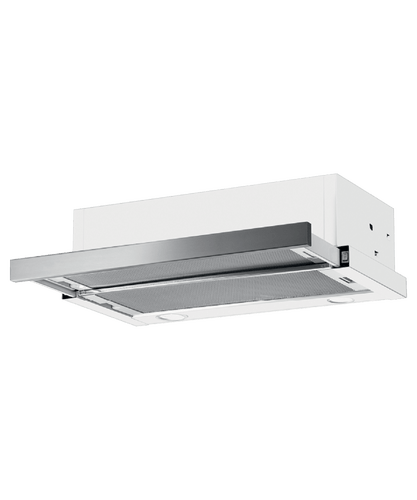

HS60LXW4
60cm 300 Series
Telescopic Wall Rangehood
- 300 Series
Simple and responsive extraction is always important in the kitchen. These rangehoods capture and remove cooking odours, vapour and steam. They are the perfect partner to our cooktops and come with both a sleek brushed stainless steel or white glass front panel/handle, and a white chassis. It can be ducted or recirculated.
- Finish
- White
60cm 300 Series
Telescopic Wall Rangehood
- 2 fan speeds
- Optional recirculated ducting
- Maximum decibel rating - 64dBA
Height
180mm
Width
598mm
Depth
280 - 460mm
Specifications
- Height
- 180mm
- Width
- 598mm
- Depth
- 280 - 460mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Aluminium filter | 792391 |
| Eave ducting kit | PD-RHK125E |
| Handle required for recirculation | HS60 Part No.792399 |
| Light bulb | 791822 |
| Recirculation carbon filter | 792390 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
Fan ratings
| Fan ratings Attributes | Value |
|---|---|
| Maximum air movement | 180m³/hr |
| Maximum sound rating | 64dBA |
Installation and cleaning
| Installation and cleaning Attributes | Value |
|---|---|
| Air outlet size | 100 - 120mm |
| Dishwasher safe filters | 2 |
| Ducted | Top and back extraction |
| Recirculation | Optional - top and back extraction |
Performance
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 2 |
| Filter type | Mesh |
| Number of filters | 2 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 280 - 460mm |
| Height | 180mm |
| Width | 598mm |
Product information
| Product information Attributes | Value |
|---|---|
| Control type | Switch |
Ventilation features
| Ventilation features Attributes | Value |
|---|---|
| Light type | LED 2 x 3.5W |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
Resources
Please note: Videos are not for downloading purposes
Download the resource
Download and open pdf in new tab
General
Customer Reviews
Rated 4 out of
5
by
Michael from
Fisher & Paykel 60cm Telescopic Wall Rangehood - W
It is noisy and costs the same amount as the electrician who installed it. It is moderately effective but does not completely remove the smell of cooking bacon from the house.
Date published: 2022-09-23
