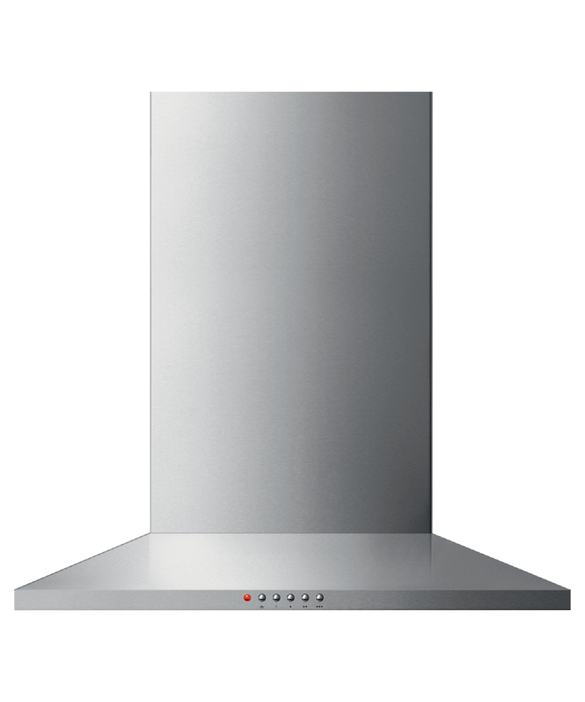

HC60PLX4
60cm 500 Series
Pyramid Chimney Wall Rangehood
- 500 Series
With powerful extraction, this rangehood effectively captures and eliminates cooking odours, vapour and steam. It is the perfect partner to our cooktops, featuring a low profile and finished with sleek brushed stainless steel.
Stainless Steel
- Finish
- Stainless Steel
60cm 500 Series
Pyramid Chimney Wall Rangehood
- 3 fan speeds
- Optional recirculated ducting
- Maximum decibel ratings - 65dBA
Height
610 - 1050mm
Width
598mm
Depth
500mm
Specifications
- Height
- 610 - 1050mm
- Width
- 598mm
- Depth
- 500mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Aluminium filter | 792527 |
| Chimney extension | 792492 (Cover duct extension 850mm) |
| Eave ducting kit | PD-RHK15OE |
| Light bulb | 792461 |
| Recirculation carbon filter | 792481 |
| Roof ducting kit | PD-RHK15OR |
| Side wall ducting kit | PD-RHK15OW |
Fan ratings
| Fan ratings Attributes | Value |
|---|---|
| Maximum air movement | 780m³/hr |
| Maximum sound rating | 65dBA |
Installation and cleaning
| Installation and cleaning Attributes | Value |
|---|---|
| Air outlet size | 120 - 150mm |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Recirculation | Optional - top extraction |
| Two piece height adjustable flue |
Performance
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 2 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 500mm |
| Height | 610 - 1050mm |
| Width | 598mm |
Product information
| Product information Attributes | Value |
|---|---|
| Control type | Push Button |
Ventilation features
| Ventilation features Attributes | Value |
|---|---|
| Light type | LED 2 x 3.5W |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
