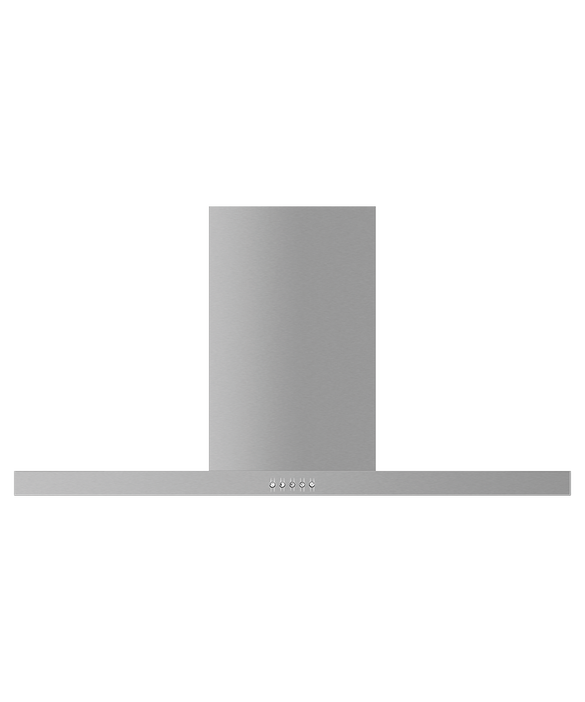

Wall Rangehood, 90cm, Box Chimney, pdp

Wall Rangehood, 90cm, Box Chimney

5 out of 5 Customer Rating Reviews

Keep your kitchen free of steam, grease, and cooking odours thanks to this stylish and effective rangehood, with three fan speeds.

Finish Stainless Steel
Wall Rangehood, 90cm, Box Chimney
  • Efficient 700m3/hr air flow
  • Easy to clean, with dishwasher-safe filters
  • Energy-efficient LED lights illuminate your cooktop perfectly
  • Ducted or recirculation options for more flexibility when installing
Height 540 - 1020mm
Width 898mm
Depth 500mm

Features & Benefits

Effective, efficient extraction

Effective, efficient extraction

Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.

Clean and pristine

Clean and pristine

Built from beautiful stainless steel, this rangehood is easy to keep clean. Put the aluminium filters into your dishwasher regularly for a quick, simple clean.

A joy to use

A joy to use

Creating culinary delights is a pleasure thanks to design features such as simple push-button controls that turn on extraction immediately, and low-energy LED lighting to perfectly illuminate your cooktop.

Installed to suit

Installed to suit

This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.


540 - 1020mm


Aluminium filter H0530060509
Chimney extension H0530062212
Light bulb H0530061789
Recirculation carbon filter H0530061789
Recirculation kit H0530062211

Fan ratings

Maximum air movement 700m³/hr
Maximum sound rating 70dBA

Installation and cleaning

Air outlet size 150mm
Dishwasher safe filters
Ducted Top extraction
Recirculation Optional - top extraction
Two piece height adjustable flue


Extraction type Surface
Fan speeds 3
Filter type Mesh
Number of filters 3

Power requirements

Supply frequency 50Hz
Supply voltage 220 - 240V

Product dimensions

Depth 500mm
Height 540 - 1020mm
Width 898mm

Product information

Control type Push button

Ventilation features

Light type LED 2 x 2W


Parts and labour 2 years
