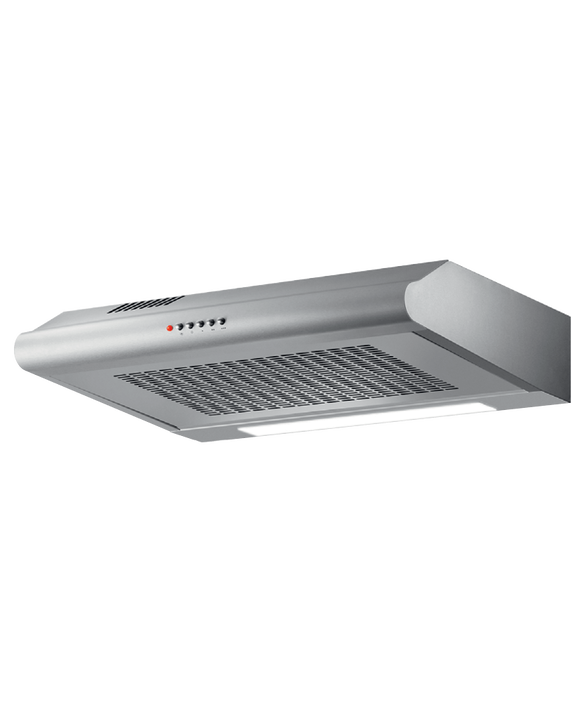

HF60LX4
Wall Rangehood, 60cm, Fixed
Simple and responsive extraction is always important in the kitchen. These rangehoods capture and remove cooking odours, vapour and steam.
Stainless Steel
| Finish | Stainless Steel |
|---|
Wall Rangehood, 60cm, Fixed
Height
120mm
Width
598mm
Depth
450mm
Specifications
- Height
- 120mm
- Width
- 598mm
- Depth
- 450mm
Accessories
| Eave ducting kit | PD-RHK125E |
|---|---|
| Light bulb | 792507 |
| Recirculation carbon filter | 792506 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
Fan ratings
| Maximum motor performance | 350m³/hr |
|---|---|
| Maximum pressured air movement EN61591 | 185m³/hr |
| Maximum sound rating | 58dBA |
Installation and cleaning
| Air outlet size | 120mm |
|---|---|
| Dishwasher safe filters | 1 |
| Ducted | Top extraction |
| Recirculation | Optional - front extraction |
Performance
| Extraction type | Surface |
|---|---|
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 1 |
Power requirements
| Supply frequency | 50Hz |
|---|---|
| Supply voltage | 220 - 240VV |
Product dimensions
| Depth | 450mm |
|---|---|
| Height | 120mm |
| Width | 598mm |
Product information
| Control type | Push button |
|---|
Ventilation features
| Light type | Incandescent 1 x 40W |
|---|
Warranty
| Parts and labour | 2 years |
|---|
