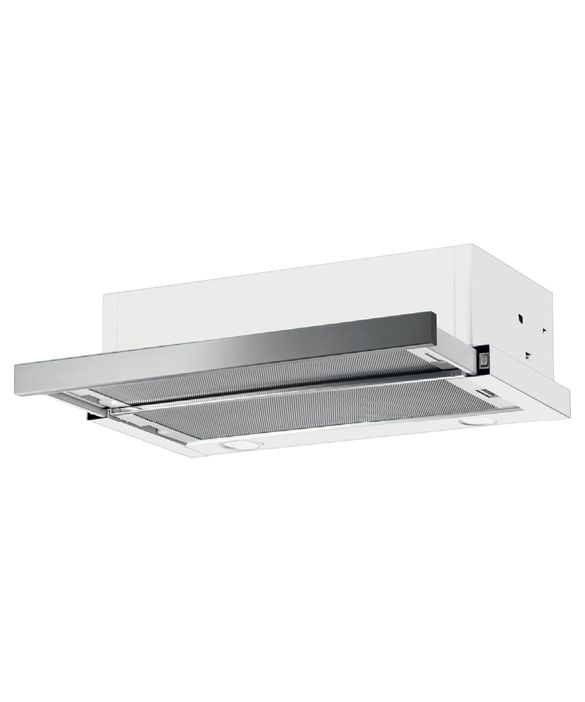

HS60XW4
Wall Rangehood, 60cm, Telescopic
Simple and responsive extraction is always important in the kitchen. These ducted rangehoods capture and remove cooking odours, vapour and steam. They are the perfect partner to our cooktops and come with both a sleek brushed stainless steel or white glass front panel/handle, and a white chassis.
| Finish | White |
|---|
Wall Rangehood, 60cm, Telescopic
- 2 fan speeds
- Maximum decibel rating - 66dBA
Height
180mm
Width
598mm
Depth
280 - 460mm
Specifications
- Height
- 180mm
- Width
- 598mm
- Depth
- 280 - 460mm
Accessories
| Aluminium filter | 792391 |
|---|---|
| Eave ducting kit | PD-RHK125E |
| Light bulb | 791822 |
| Recirculation carbon filter | 792390 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
Fan ratings
| Maximum air movement | 340m³/hr |
|---|---|
| Maximum sound rating | 66dBA |
Installation and cleaning
| Air outlet size | 120mm |
|---|---|
| Dishwasher safe filters | 2 |
| Ducted | Top extraction only |
| Recirculation | No |
Performance
| Extraction type | Surface |
|---|---|
| Fan speeds | 2 |
| Filter type | Mesh |
| Number of filters | 2 |
Power requirements
| Supply frequency | 50Hz |
|---|---|
| Supply voltage | 220 - 240V |
Product dimensions
| Depth | 280 - 460mm |
|---|---|
| Height | 180mm |
| Width | 598mm |
Product information
| Control type | Switch |
|---|
Ventilation features
| Light type | LED 2 x 3.5W |
|---|
Warranty
| Parts and labour | 2 years |
|---|
Resources
General
- Quick Reference guide
-
User Guide
Wall Rangehood, 60cm, Telescopic, GeneralFiles-HaierNZ
