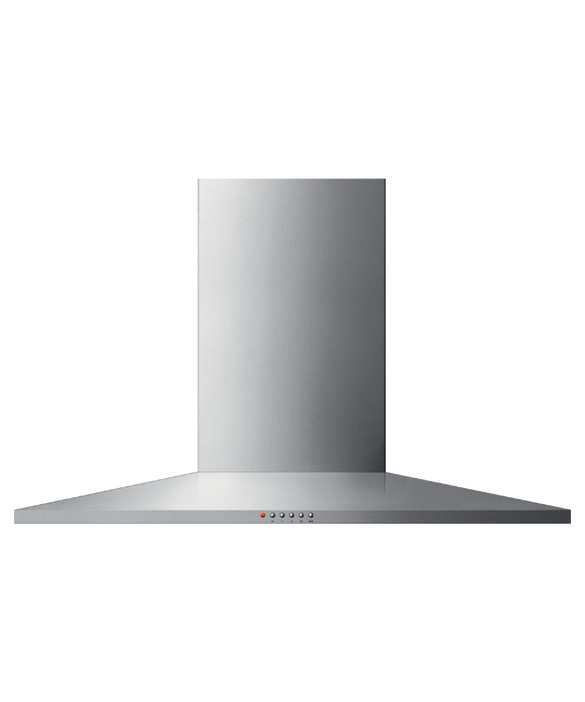

Wall Rangehood, 90cm, Pyramid Chimney, pdp
HC90PLX4

Wall Rangehood, 90cm, Pyramid Chimney

3.1 out of 5 Customer Rating Reviews

With powerful extraction, this rangehood effectively captures and eliminates cooking odours, vapour and steam. It is the perfect partner to our cooktops, featuring a low profile and finished with sleek brushed stainless steel.

Finish Stainless Steel
Wall Rangehood, 90cm, Pyramid Chimney
  • 3 fan speeds
  • Optional recirculated ducting
  • Maximum decibel rating - 65dBA
Height 610 - 1050mm
Width 898mm
Depth 500mm

Specifications

Height
610 - 1050mm
Width
898mm
Depth
500mm

Accessories

Aluminium filter 792527
Chimney extension 792492 (Cover duct extension 850mm)
Eave ducting kit PD-RHK15OE
Light bulb 792461
Recirculation carbon filter 792481
Roof ducting kit PD-RHK150T
Side wall ducting kit PD-RHK15OW

Fan ratings

Maximum air movement 780m³/hr
Maximum sound rating 65dBA

Installation and cleaning

Air outlet size 120 - 150mm
Dishwasher safe filters 3
Ducted Top extraction
Recirculation Optional - top extraction
Two piece height adjustable flue

Performance

Extraction type Surface
Fan speeds 3
Filter type Mesh
Number of filters 3

Power requirements

Supply frequency 50Hz
Supply voltage 220 - 240V

Product dimensions

Depth 500mm
Height 610 - 1050mm
Width 898mm

Product information

Control type Push button

Ventilation features

Light type LED 2 x 3.5W

Warranty

Parts and labour 2 years
